Horizontal Gene Transfer in Biofilms

First discovered in 1928 by Frederick Griffith, lateral gene transfer is the process by which bacteria can pass genetic material laterally, from one bacterial cell to another rather than to descendent cells.  Griffith showed that an extract from virulent but killed Streptococcus pneumonia cells when added to a living culture of nonvirulent  S. pneumoniae could cause a proportion of these cells to become virulent in turn.  The extract in question was, of course, DNA and this classic experiment demonstrated not only horizontal (or lateral) gene transfer (HGT) but also provided the first evidence for DNA as the genetic material.  The mechanism described by Griffith is now termed Transformation and in this process, by mechanisms still not fully understood, living bacterial cells in a physiological state called competence take up foreign DNA across their cell membrane and incorporate it into their own genome by genetic recombination.

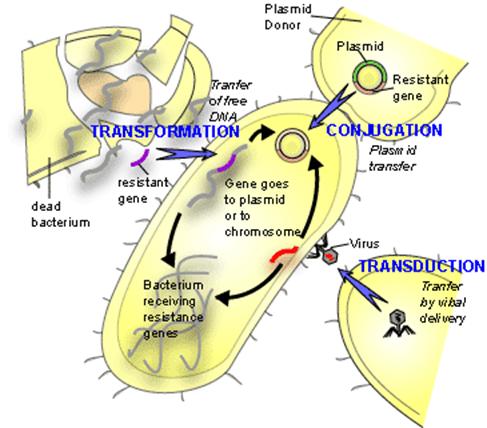

Since Griffith’s pioneering discovery of transformation, two other mechanisms of HGT have been discovered, these are conjugation and  transduction.  Conjugation  requires direct physical contact between the doner and the recipient cell.  This contact is made by a tube called an F or sex pilus.  The F-pilus is made of protein and is produced by the donor cell, which possess a genetic element called a tra  (transfer gene cluster) operon.  This gene cluster is typically contained on a small independently replicating circular piece of DNA called a plasmid.  Although there are many types of plasmids in bacteria, which confer all manner of unique traits on cells possessing them (antibiotic resistance, heavy metal resistance, and virulence for example), this F plasmid dircts the construction of the sex pilus by which an F bearing cell may attach to a cell lacking the F-plasmid.  The pilus then contracts drawing the cells closer together.  There is dispute as to whether the DNA passes through the F pilus or whether the pilus is only a mechanism to draw cells together and that DNA transfer is directly from cell to cell across the cell membrane.  Babic et al. may have settled this question by demonstrating that cells,not directly in cell wall contact can still pass transfer DNA over considerable distances (ie. 12 mm) Ref.

In transduction a bacterial virus or phage is mistakenly packaged with a piece of bacterial DNA.  When this virus “infects” another bacterium at least a portion of the DNA introduced into the cell is bacterial not viral.  The bacterial DNA so introduced is now available for inclusion in the bacterial genome either by recombination or by the integration of the bacterial virus into the host genome (lysogeny).

Each of these mechanisms has in common the donor to recipient unilateral transfer of genetic material but they differ in the mode of DNA delivery.  Transformation is limited by the exposure of native DNA to the external environment in which the molecule may be attacked by nuclease enzymes that can destroy its integrity. Conjugation is limited by the necessity for donor and recipient cells to come into close proximity with one another on the scale of a few tens of mm. Transduction requires the production of enormous numbers of virus particles only a small proportion of which will be defective and carrying bacterial DNA.  Furthermore, only a small proportion of these so-called defective viruses will find susceptible hosts to infect. Each of these limitations would seem to be lessened if the cells involved in the transfer were contained within a highly hydrated, viscoelastic mass, in other words a biofilm.

Some might argue that naked DNA, as required for transformation, would be especially vulnerable in a biofilm environment.  The work of Cynthia Whitchurch and her colleagues suggests that far from being a hostile environment for isolated DNA, extracellular DNA may be an integral and necessary component of at least some biofilms (Pseudomonas aeruginosa)Ref.   These investigators found that the matrix of P. aeruginosa biofilms contains significant amounts of DNA and that distruction of this DNA by Deoxyribonuclease resulted in the dissolution of young, although not of old, biofilms, indicating that extracellular DNA is a necessary structural component of the matrix of developing Pseudomonas biofilms.  This observation, if general in scope, might indicate that the matrix environment is not as hostile to native DNA as one might think, a favorable circumstance for transformation.

In vitro research into each of the three mechanisms of HGT was initially carried out in liquid phase culture with subsequent identification of recombinant cells on selective media.

Transformation in bacteria depends upon the recipient cells being in a state termed competence.  Cells in this state are capable of taking up extracellular DNA with the eventual incorporation of a portion of this DNA into the host genome by genetic recombination.  In many of the most common systems in which transformation has been studied it has been shown that competence is under the control of a process called Quorum Sensing (QS).   QS is a phenomenon in which bacteria can chemically sense the presence of other bacteria and when bacterial populations become high enough, new suites of genes may be expressed.   Small molecules produced by these bacteria are released into the surrounding environment and when the concentration of these compounds reaches a critical threshold they bind to RNA polymerase enzymes and initiate the transcription of genes formerly inactive. In a flowing environment, it seems likely that these small molecules would be washed away, in a biofilm, however, one might expect these small molecular weight compounds to accumulate resulting in DNA transcription.  In Bacillus subtilus, Streptococcus mutans, S. gordonii and S. pneumonia QS is known to be involved in the induction of competence. It is also known that these organisms all participate in  biofilm formation.

In one investigation C. Vitkovitch (2004) demonstrated that biofilm grown streptococcus mutans was transformed to erythromycin resistance either by the addition of naked DNA or heat killed donor cells carrying the antibiotic resistance genotype.  The rates of transformation were 10 to 600 times greater than those observed in cells in planktonic culture. Young biofilms, 8 to 16 hours old, exhibited the highest rates of transformation but it was also shown that in biofilms of any age there were always competent cells present.  Aside from demonstrating the capability of biofilms to undergo transformation, this experiment shows that the biofilm matrix is no barrier to DNA penetration.

Conjugational transfer of a tetracycline bearing plasmid was demonstrated by Dunny in Enterococcus faecalis.  The recipient strain, was established as a biofilm on glass rods in a biofilm reactor.  Pre-grown donor cells were added to the reactor and the biofilms were harvested at various intervals with the cells being assayed for plasmid transfer on selective medium plates.  Plasmid transfer in the biofilm system was observed to be 100 times higher than in planktonic culture.  As was the case with transformation, plasmid transfer in conjugation was more effective in young biofilms with the rate declining as the biofilms became thicker (Dunny et al. 1995).   The close association between microbes of many different species found in naturally occurring (non-laboratory) biofilms would seem to open the possibility of cross species conjugation.

In fact intergeneric conjugation has been observed in in vitro laboratory studies.  In one example, a dual biofilm was created consisting of a Bacillus subtilus strain carrying a tetracycline resistant gene construct and a sensitive Staphylococcus species.  After 6 and 24 hours, Staphylococcus isolates resistant to tetracycline were recovered and were shown to be carrying the identical tetracycline resistant gene originally borne by the Bacillus (Roberts et al. 1999).

Reports  of transduction within biofilms are not as common as those of transformation or conjugation.  Numerous reports exist of bacterial virus genes being expressed in biofilms.  There are also examples of bacterial genes carried by bacteriophages being expressed in the cells of biofilms, but no clear examples of bacterial gene transduction have been reported (James Bryers, Personal communication).  Nevertheless, given the ubiquity of virus infection in bacterial populations, and the ease with which bacterial viruses penetrate the matrices of biofilms, it would seem likely that transduction too is a common means of horizontal gene transfer in biofilms.
